Specifications

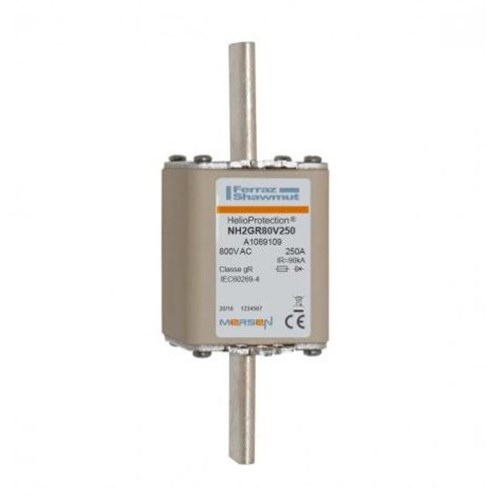

Product Type	Photovoltaic Fuse Link
Brand	Mersen
Series	HelioProtection NH fuse-links 800VAC gR
Application	Photovoltaic systems and DC/800VAC solar inverter protection; full-range protection of cables and equipment.
Utilization Category	gR
Breaking Capacity	90 kA AC
Rated Current	250 A
Rated Frequency	50-60 Hz
Rated Voltage	800 V AC
Speed Class	gR / full range
Body Style	Square body
Connection/Termination	Plain blades for clip
Fuse Holder	NH fuse holder / 800VAC fuse-switch-disconnector
Indicators	without indicator
Material	Fuse element and NH blade contacts in ceramic body
Mounting	NH fuse holder / fuse-switch-disconnector
Size Code	NH2
Weight	0.7 kg (Approx.)
Standards and Approvals	IEC 60269-4; UL 248-13; UL 248-1
