Specifications

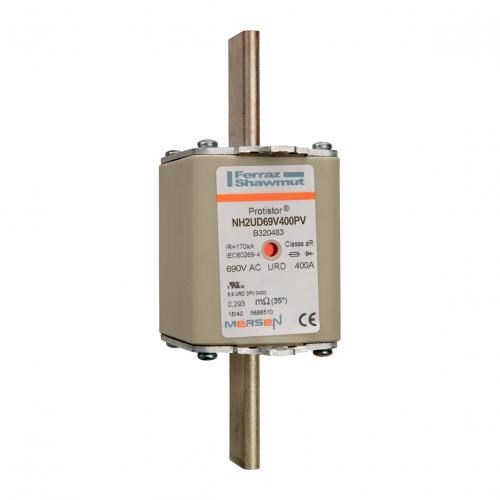

Product Type	Fuse Link
Brand	Mersen
Application	Protection of inverters, UPS systems, motor drives and similar 700V or less equipment
Breaking Capacity	170 kA
Rated Current	400 A
Rated Voltage	690 V
Body Style	Square body
Indicators	Double indicator
Material	Body:Ceramic, Terminal: brass
Size Code	Size 2
Height	74 mm
Length	150 mm
Weight	0.62 kg (Approx.)
Width	52 mm
Standards and Approvals	IEC 60269-4, UL/CSA Recognized
