Specifications

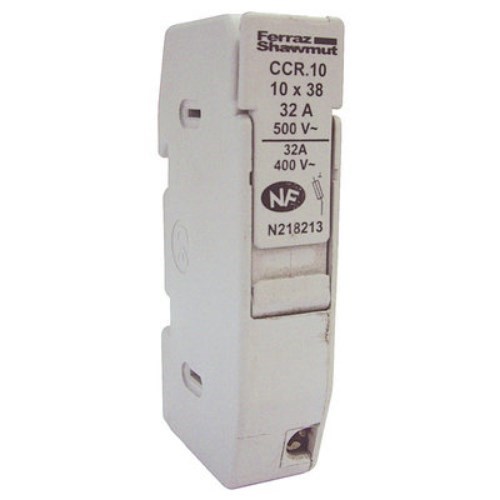

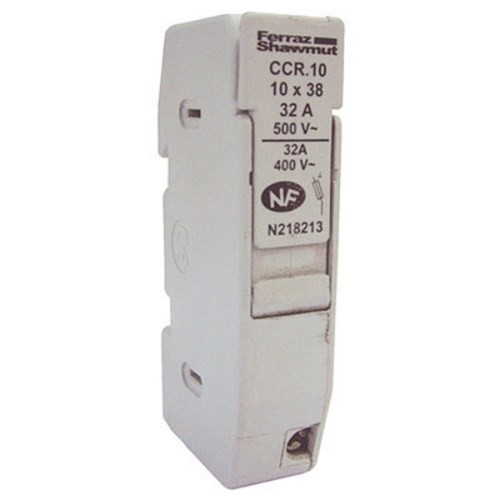

Product Type	Compact fuse holder
Brand	Mersen
Series	Compact fuse holders CCR
Application	Protection of motors, transformers, low-voltage distribution and control circuits, compact space applications
Suitable For	10 x 38 mm cylindrical fuse links
Rated Current	32 A
Rated Short Circuit Current	120 kA
Rated Voltage	500 V AC
Cable Entry	Rigid wire 1-10 mm², multistranded wire 1-6 mm²
Connection/Termination	Philips slot-head screw terminals
Mounting	DIN rail
IP Rating	IP20
Standards and Approvals	IEC 60269-2, IEC 60269-3, IEC 60947-3, RoHS
