Specifications

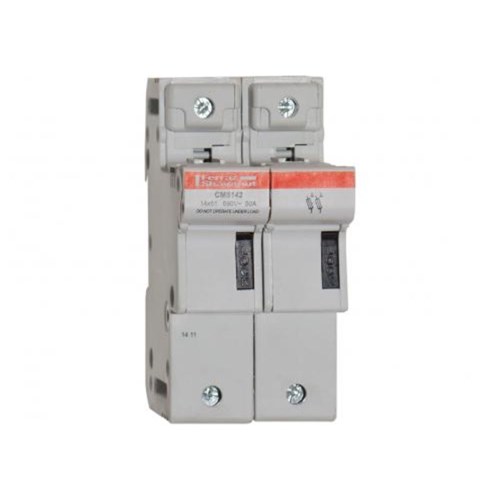

Product Type	Modular fuse holder
Brand	Mersen
Series	Modulostar CMS14
Application	Protection of motors, transformers, low-voltage distribution and control circuits, compact space applications
Suitable For	14 x 51 mm cylindrical fuse links with striker for microswitch use
Rated Current	50 A
Rated Short Circuit Current	100 kA
Rated Voltage	690 V AC / 690 V DC
Cable Entry	Rigid wire 1.5-35 mm², stranded wire 1.5-25 mm²
Connection/Termination	Screw terminals
Mounting	DIN rail
IP Rating	IP20
Standards and Approvals	IEC 60269-2, IEC 60947-3, RoHS
