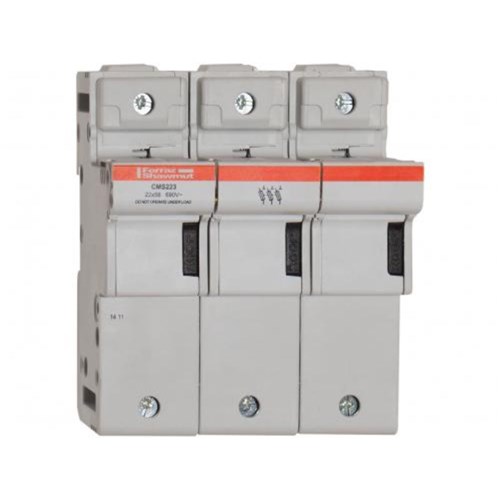

Mersen CMS223 Compact Fuse Holder 125A 3-P 690VAC/DC DIN Rail Mount 22mm Dia x 58mm L Fuse

Product Code: CMS223

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Modular fuse holder
Brand Mersen
Series Modulostar CMS22
Application Protection of motors, transformers, low-voltage distribution and control circuits, compact space applications
Suitable For 22 x 58 mm cylindrical fuse links
Rated Current 125 A
Rated Short Circuit Current 100 kA
Rated Voltage 690 V AC / 690 V DC
Cable Entry Rigid wire 1.5-50 mm², multistrand wire 35 mm²
Connection/Termination Screw terminals
Mounting DIN rail
IP Rating IP20
Standards and Approvals IEC 60269-2, IEC 60947-3, RoHS
