Specifications

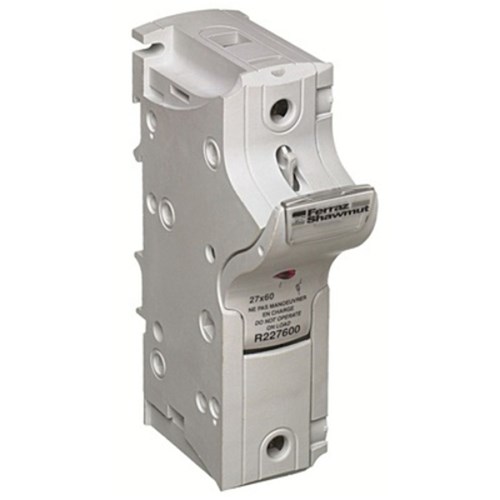

Product Type	Modular fuse holder
Brand	Mersen
Series	Modulostar CMS27 / UltraSafe US27
Application	High-speed fuse protection for small inverters, UPS systems and motor drives, non-load operation
Suitable For	27 x 60 mm cylindrical fuse links
Rated Current	140 A max
Rated Voltage	800 V AC / 800 V DC
Connection/Termination	Faston lugs
Mounting	DIN rail
Depth	86 mm
Height	117 mm
Width	80 mm
IP Rating	IP20
Standards and Approvals	IEC 60269-2, IEC 60947-3, UL 4248-1, RoHS
