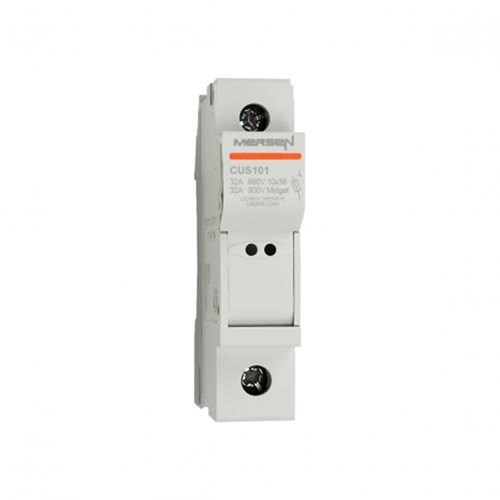

Mersen CUS101 Compact Fuse Holder 32A 1-P 1000VDC DIN Rail Mount 10sq-mm Cable Entry 10mm Dia x 38mm L Fuse

Product Code: CUS101

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Fuse Holder
Brand Mersen
Rated Current 32 A
Rated Voltage 1000 V DC
Fuse Size 10 mm Dia x 38 mm L
Cable Entry 10 sq-mm
Mounting Type DIN rail mount
Tightening Torque 2 N-m
Top Cap Diameter 10 mm
Depth 61.1 mm
Height 79.3 mm
Weight 0.045 kg
Width 17.5 mm
Size Ø10 mm × 38 mm
IP Rating IP20

Documents

IPD Product Catalogue V17
MERSEN Datasheet

Certificate

CSA Certification
EU Declaration of Conformity
REACH Certification
