Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Application	Semiconductor protection for power electronic systems.
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	1000 A
Rated Voltage	690 V AC
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	DIN 80 blades
Fixing Centres	80 mm
Indicators	Striker
Material	Ceramic body, silver-plated copper contacts, non-magnetic hardware, silica sand filler
Mounting	DIN 80 blades
Size Code	Size 33
Depth	78.5 mm
Length	110 mm
Weight	0.81 kg (Approx.)
Width	73 mm
Standards and Approvals	IEC 60269-4

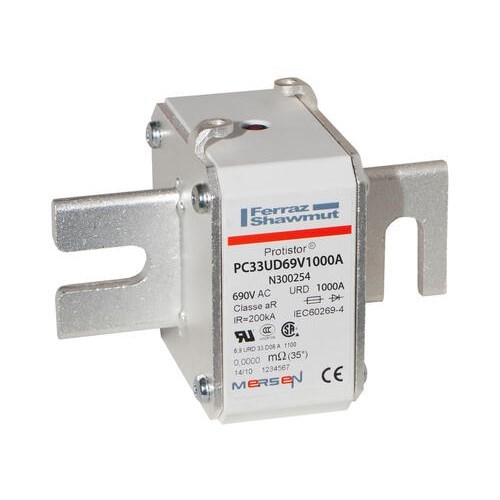

MERSEN FUSE LINK 1000A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V N300254
