Specifications

Product Type	Semiconductor fuse link
Brand	Mersen
Series	Protistor
Application	Semiconductor protection
Utilization Category	aR
Breaking Capacity	200 kA
Power Loss	26 W
Rated Current	100 A
Rated Voltage	690 V
Speed Class	aR
Body Style	Square body
Connection/Termination	DIN 110 Blades
Fixing Centres	110 mm
Indicators	Striker
Material	Body: Ceramic; Contact: Silver plated copper
Mounting	Bolted
Size Code	Size 30
Length	134.6 mm
Weight	0.30 kg (Approx.)
Width	40 mm
Standards and Approvals	IEC 60269-1 & -4

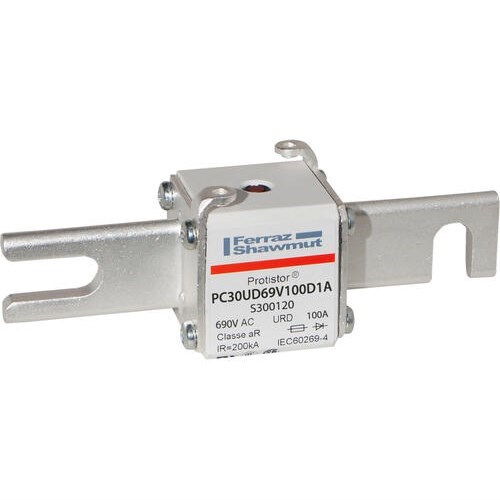

MERSEN FUSE LINK 100A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V S300120
