Specifications

Product Type	High-speed semiconductor fuse
Brand	Mersen
Application	Protection of power semiconductors
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	100 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC IEC / 700 V AC UL
Speed Class	Ultra-fast acting
Body Style	NH blade fuse
Connection/Termination	DIN 80 blades
Fixing Centres	80 mm
Indicators	with striker
Material	Silver-plated contacts; sand-filled body
Mounting	NH fuse base
Size Code	NH000 / body size 000
Weight	0.13 kg
Standards and Approvals	IEC 60269-1; IEC 60269-4; UL recognized file E76491

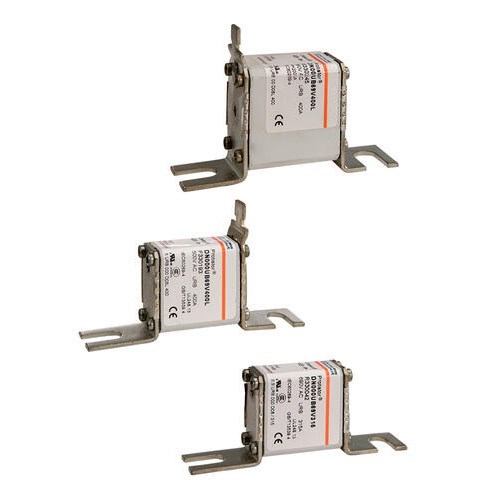

MERSEN FUSE LINK 100A URB 80MM FIX FOR SEMICONDUCTOR PROTECTION BODY SIZE 000, 660V V330183
