Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Application	Semiconductor protection for power electronics: drives, converters, inverters, UPS and rectifier equipment.
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	1100 A
Rated Voltage	600 V AC
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	Flush ends metric threads
Indicators	Striker
Material	Ceramic body, silver-plated copper contacts, non-magnetic hardware, silica sand filler
Mounting	Flush ends metric threads
Size Code	Size 32
Depth	65 mm
Length	50.6 mm
Weight	0.5463 kg (Approx.)
Width	59 mm
Standards and Approvals	IEC 60269-4

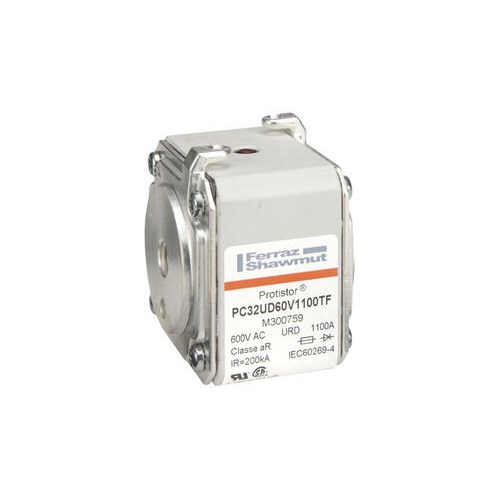

MERSEN FUSE LINK 1100A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V M300759
