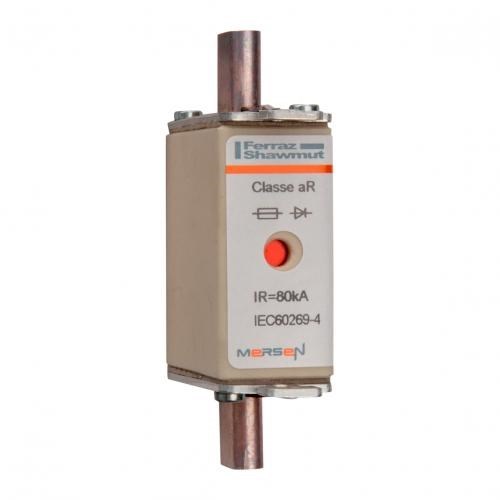

MERSEN FUSE LINK 125A 690V URD 000 NH FOR SEMICONDUCTOR PROTECTION USE NH FUSE BASES X320065

Product Code: X320065

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type High-speed fuse-link
Brand Mersen
Series aR
Application Semiconductor protection
Utilization Category aR
Breaking Capacity 200 kA AC
Rated Current 125 A
Rated Frequency 50/60 Hz
Rated Voltage 690 V AC
Speed Class aR
Body Style NH DIN body
Connection/Termination DIN blade
Indicators Striker
Material Body: Ceramic, Contact: Silver plated copper
Size Code NH000 / Size 000
Standards and Approvals IEC 60269-4; DIN 43620
