Specifications

Product Type	Fuse link
Brand	Mersen
Application	Rectifiers, small inverters, UPS systems and variable speed AC drives
Utilization Category	gR
Breaking Capacity	200 kA AC
Rated Current	150 A
Rated Voltage	690 V AC
Speed Class	High speed / extremely high breaking capacity
Body Style	Dual body BS88 offset tag fuse
Connection/Termination	Offset tags
Indicators	Without indicator
Material	Ceramic body, silver fuse elements, metal tags
Mounting	BS88 fuse holder / bolted tag mounting
Length	49 mm
Weight	0.0828 kg (Approx.)
Width	2 x 17 mm
Standards and Approvals	IEC 60269-1; IEC 60269-4; BS88-4; DIN 43653/00C; VDE 636-23

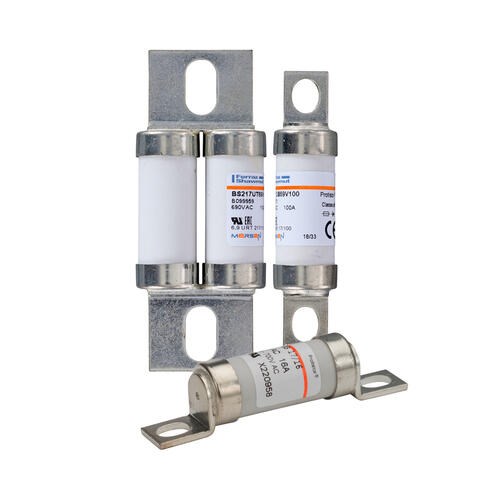

MERSEN FUSE LINK 150A 690V OFFSET TAG DUAL BODY SEMICONDUCTOR Replaces GSGB150 C099960
