Specifications

Product Type	Fuse Link
Brand	Mersen
Application	Power semiconductor protection for diodes, thyristors and IGBT devices
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	1600 A
Rated Voltage	600 V AC
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	DIN 110 blades
Fixing Centres	110 mm
Indicators	With striker
Material	Body:Ceramic, Terminal: Silver plated copper
Mounting	DIN 110 blades
Size Code	Size 33
Depth	78.5 mm
Length	134.6 mm
Weight	0.87 kg (Approx.)
Width	73 mm
Standards and Approvals	IEC 60269-4; VDE 636-23; CCC GB 13539.4; RoHS

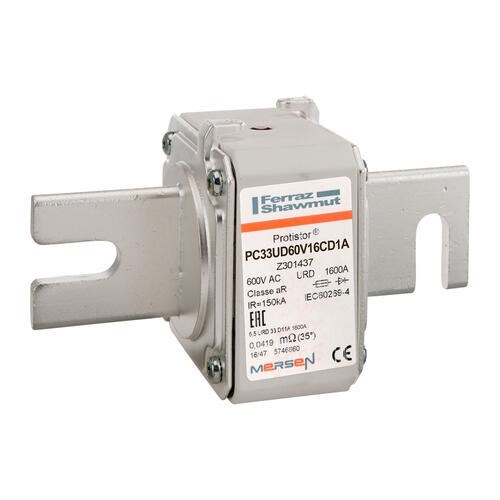

MERSEN FUSE LINK 1600A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V Z301437
