Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Application	Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	1600 A
Rated Voltage	500 V AC IEC / 550 V AC UL
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	Flush ends metric threads
Indicators	Striker
Material	Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting	Flush ends metric threads
Size Code	Size 32
Depth	59 mm
Height	65 mm
Length	78 mm
Weight	0.529 kg (Approx.)
Width	59 mm
Standards and Approvals	IEC 60269-4

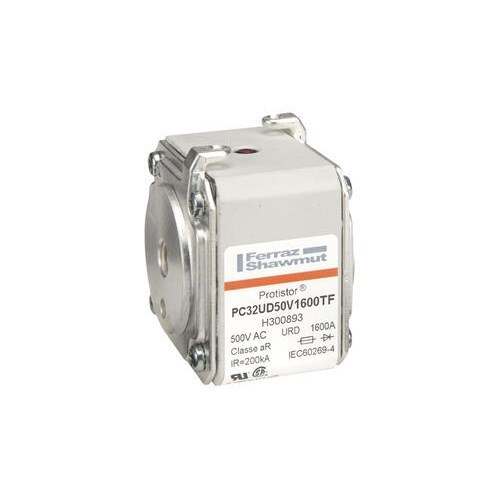

MERSEN FUSE LINK 1600A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 500V H300893
