Specifications

Product Type	Fuse Link
Brand	IPD
Application	Protection of inverters, motor drives, UPS systems and similar 690V or less equipments
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	160 A
Rated Voltage	690 V
Speed Class	Ultra-fast acting
Body Style	Square body
Connection/Termination	DIN 110 Blades
Fixing Centres	110 mm
Indicators	Wth striker
Material	Body:Ceramic, Terminal: Silver plated copper
Size Code	Size 30
Height	48 mm
Length	134.6 mm
Weight	0.30 kg (Approx.)
Width	40 mm
Standards and Approvals	IEC 60269.4

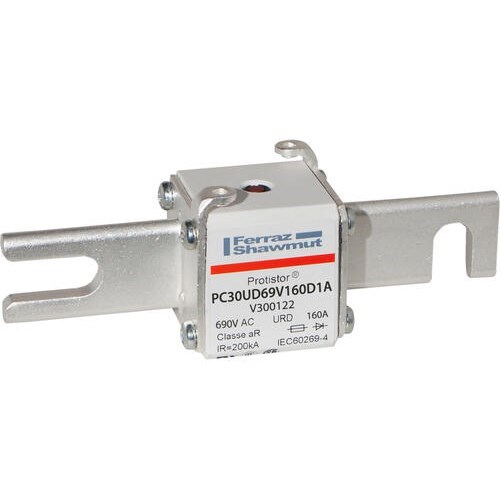

MERSEN FUSE LINK 160A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V V300122
