Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Application	Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	160 A
Rated Voltage	690 V AC IEC / 700 V AC UL
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	DIN 80 blades
Fixing Centres	80 mm
Indicators	Striker
Material	Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting	DIN 80 blades
Size Code	Size 30
Depth	53 mm
Height	51 mm
Length	110 mm
Weight	0.30 kg (Approx.)
Width	45 mm
Standards and Approvals	IEC 60269-4

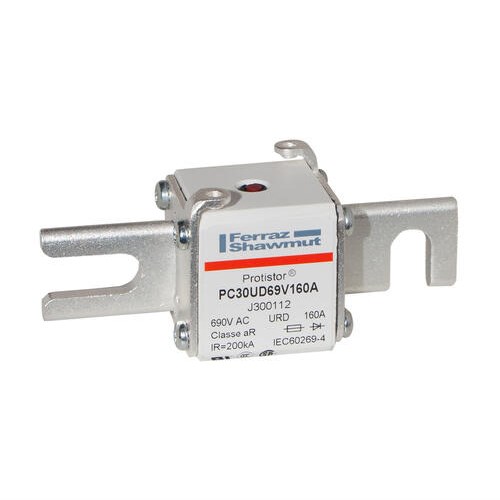

MERSEN FUSE LINK 160A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V J300112
