Specifications

Product Type	Square body high-speed semiconductor fuse
Brand	Mersen
Application	Protection of power semiconductors: diodes, thyristors, IGBT devices, inverters, drives and UPS
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	160 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC IEC / 700 V AC UL
Speed Class	Ultra-fast acting
Body Style	Square body
Connection/Termination	Flush ends metric threads
Indicators	with striker
Material	Ceramic body; silver-plated contacts; sand-filled fuse element
Mounting	End contact / bolted mounting
Size Code	Body size 30
Weight	0.25 kg
Standards and Approvals	IEC 60269-4; VDE 636-23

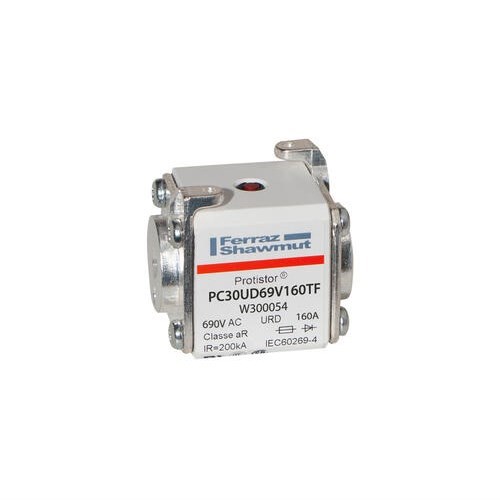

MERSEN FUSE LINK 160A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V W300054
