Specifications

Product Type	Square body high-speed fuse
Brand	Mersen
Series	Protistor NH1UD
Application	Semiconductor protection for power conversion equipment, diodes, thyristors and IGBT devices
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	160 A
Rated Voltage	690 V AC IEC / 700 V AC UL
Speed Class	Ultra-fast / aR
Body Style	Square body
Connection/Termination	Plain blades
Indicators	Double indicator
Material	Silver fuse elements; silver-plated contacts; sand-filled body
Mounting	Fuse holder
Size Code	NH1
Height	52.5 mm
Length	135 mm
Width	39.5 mm
Standards and Approvals	IEC 60269-4; DIN 43620 UL, CE, UKCA, RoHS, REACH

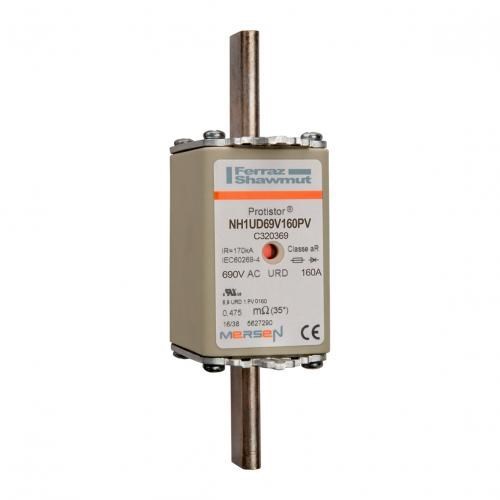

MERSEN FUSE LINK 160A NH1 DIN BLADE FOR SEMICONDUCTOR PROTECTION NHUD1-160/69 C320369
