Specifications

Product Type	High-speed cylindrical fuse
Brand	Mersen
Series	Protistor 10x38 gR
Application	Protection of inverters, UPS, variable speed drives and discrete semiconductor devices
Suitable for	CMS101
Utilization Category	gR
Breaking Capacity	160 kA
Rated Current	16 A
Rated Voltage	690 V AC
Speed Class	Super fast acting / FF
Body Style	Cylindrical
Connection/Termination	Ferrule end caps
Material	Ceramic body
Mounting	Fuse holder
Size Code	10 x 38
Length	38 mm
Weight	0.008 kg
Width	Ø 10.3 mm
Standards and Approvals	IEC 60269-4; VDE 636-23 CCC, CE, UKCA, RoHS, REACH

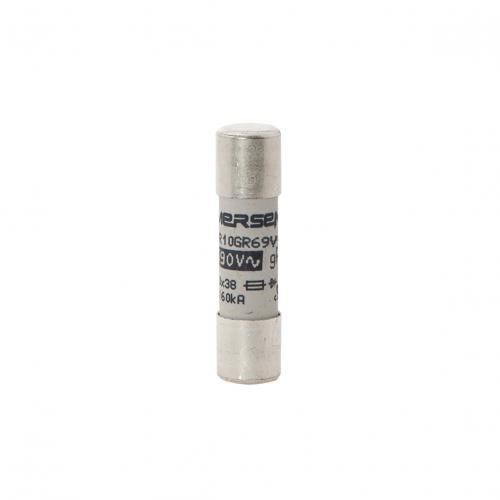

MERSEN FUSE LINK 16A 690V gR 10*38MM FOR SEMICONDUCTOR PROTECTION USE CMS101 BASE 10F16 10GR16 D1014579
