Specifications

Product Type	High speed fuse-link
Brand	Mersen
Series	Protistor
Application	Semiconductor protection
Utilization Category	aR
Rated Current	1800 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC IEC / 650 V AC UL
Speed Class	High speed
Body Style	Square body
Connection/Termination	Flush ends with metric threaded inserts
Indicators	Striker
Material	Ceramic body, silver fuse element, copper terminals
Mounting	Flush end mounting
Size Code	Size 33
Depth	78.5 mm
Length	50.6 mm
Weight	0.8056 kg (Approx.)
Width	73 mm
Standards and Approvals	IEC 60269-4

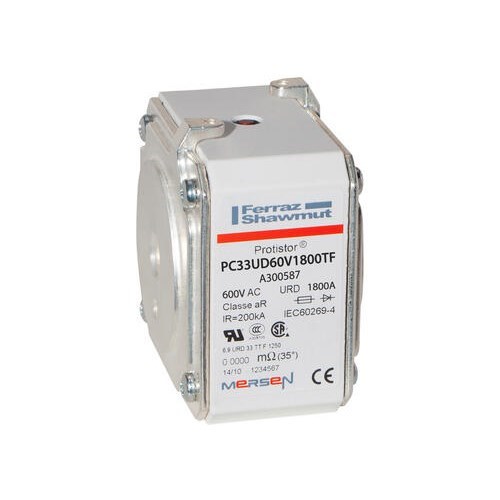

MERSEN FUSE LINK 1800A, END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 600V A300587
