Specifications

Product Type	High-speed cylindrical semiconductor fuse
Brand	Mersen
Application	Protection of power semiconductors; use CMS101 base
Utilization Category	gR
Breaking Capacity	High breaking capacity
Rated Current	1 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC
Speed Class	Ultra-fast acting
Body Style	Cylindrical / ferrule
Connection/Termination	Ferrule end caps
Indicators	without indicator
Material	Ceramic body; silver-plated contacts
Mounting	CMS101 fuse base
Size Code	10 x 38
Length	38 mm
Weight	0.007 kg
Width	Ø 10 mm
Standards and Approvals	IEC 60269-4

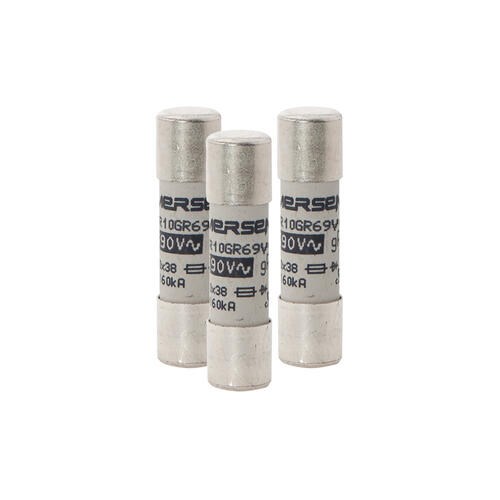

MERSEN FUSE LINK 1A 690V gR 10X38MM FOR SEMICONDUCTOR PROTECTION USE CMS101 BASE 10F01 10GR01 L1014563
