Specifications

Product Type	High-speed semiconductor fuse
Brand	Mersen
Application	Protection of power semiconductors
Utilization Category	aR
Breaking Capacity	120 kA
Rated Current	200 A
Rated Frequency	50/60 Hz
Rated Voltage	250 V AC
Speed Class	Ultra-fast acting
Body Style	Offset tag / single body
Connection/Termination	Bolt-in offset tag
Fixing Centres	48 to 66 mm
Mounting	Bolt-in mounting
Size Code	Single body
Length	82 mm
Weight	0.162 kg
Width	Ø 39.7 mm
Standards and Approvals	IEC 60269-1; IEC 60269-4

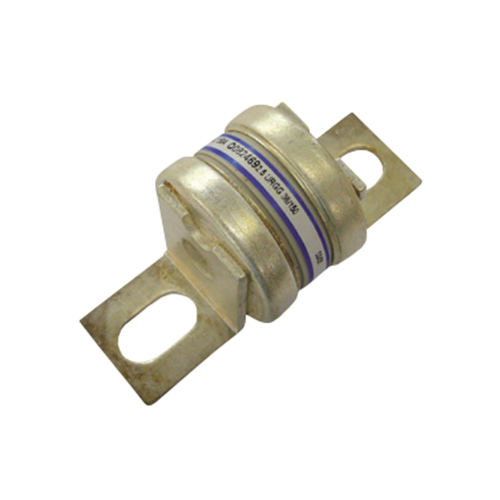

MERSEN FUSE LINK 200A 250V OFFSET TAG SINGLE BODY SEMICONDUCTOR P082468
