Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Application	Semiconductor protection for power electronic systems.
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	200 A
Rated Voltage	690 V AC
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	Flush ends metric threads
Indicators	Striker
Material	Ceramic body, silver-plated copper contacts, non-magnetic hardware, silica sand filler
Mounting	Flush ends metric threads
Size Code	Size 31
Depth	56.5 mm
Weight	0.39 kg (Approx.)
Width	51 mm
Standards and Approvals	IEC 60269-4

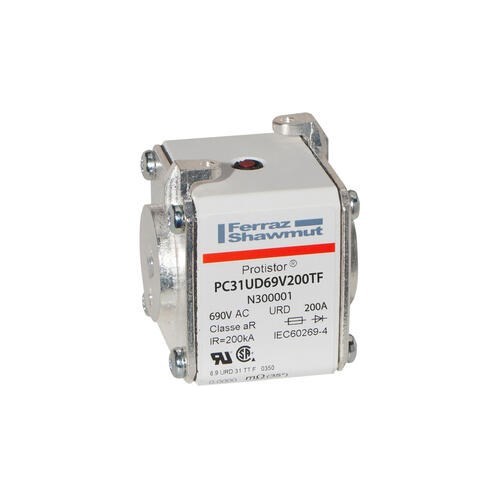

MERSEN FUSE LINK 200A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V N300001
