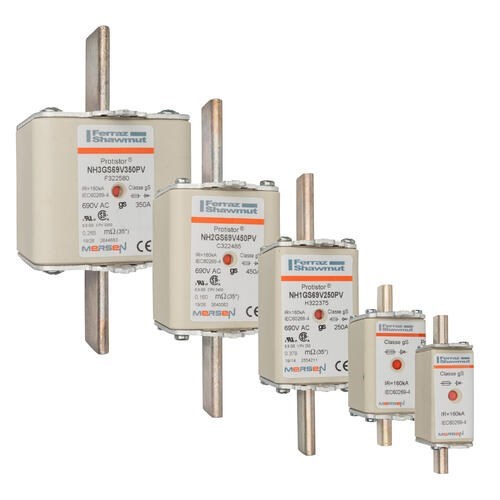

MERSEN FUSE LINK 20A 690V gS 000 FOR SEMI CONDUCTOR PROTECTION NHGS00-020 Q322037

Product Code: Q322037

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type High-speed fuse-link
Brand Mersen
Series gS
Application Semiconductor protection
Utilization Category gS
Breaking Capacity 200 kA AC
Rated Current 20 A
Rated Frequency 50/60 Hz
Rated Voltage 690 V AC
Speed Class gS
Body Style NH DIN body
Connection/Termination DIN blade
Indicators Striker
Material Body: Ceramic, Contact: Silver plated copper
Size Code NH000 / Size 000
Standards and Approvals IEC 60269-4; DIN 43620

Documents

IPD Product Catalogue V17
