Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Application	Semiconductor protection for power electronics: drives, converters, inverters, UPS and rectifier equipment.
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	2500 A
Rated Voltage	450 V AC
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	Flush ends metric threads
Indicators	Striker
Material	Ceramic body, silver-plated copper contacts
Mounting	Flush ends metric threads
Size Code	Size 33
Depth	78.5 mm
Length	50.6 mm
Weight	0.81 kg (Approx.)
Width	73 mm
Standards and Approvals	IEC 60269-4

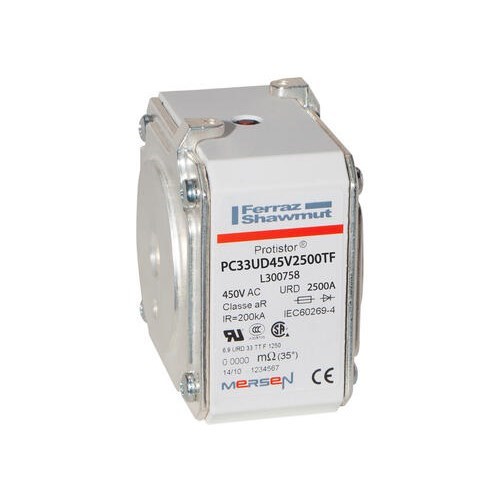

MERSEN FUSE LINK 2500A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 450V L300758
