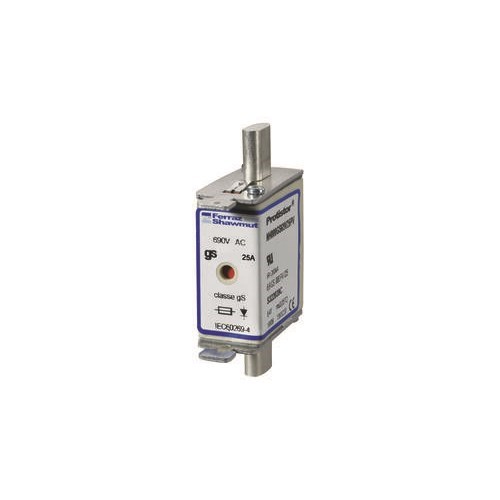

MERSEN FUSE LINK 25A 690V gS 000 DIN FOR SEMICONDUCTOR PROTECTION USE NH FUSE BASES S322039

Product Code: S322039

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type High-speed fuse-link
Brand Mersen
Series gS
Application Semiconductor protection
Utilization Category gS
Breaking Capacity 200 kA AC
Rated Current 25 A
Rated Frequency 50/60 Hz
Rated Voltage 690 V AC
Speed Class gS
Body Style NH DIN body
Connection/Termination DIN blade
Indicators Striker
Material Body: Ceramic, Contact: Silver plated copper
Size Code NH000 / Size 000
Standards and Approvals IEC 60269-4; DIN 43620
