Specifications

Product Type	High-speed cylindrical semiconductor fuse
Brand	Mersen
Application	Protection of power semiconductors; use in CMS101/CMS141 holders as applicable
Utilization Category	gR
Breaking Capacity	200 kA AC
Rated Current	2 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC IEC / 700 V AC UL
Speed Class	Ultra-fast acting
Body Style	Cylindrical / ferrule
Connection/Termination	Ferrule end caps
Indicators	with trip indicator
Material	Ceramic body; silver-plated contacts
Mounting	Fuse holder / clips
Size Code	14 x 51
Length	51 mm
Weight	0.025 kg
Width	Ø 14 mm
Standards and Approvals	IEC 60269-4; UL Recognized

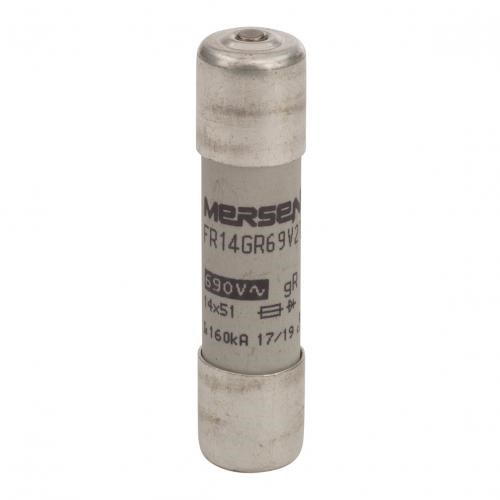

MERSEN FUSE LINK 2A 690V gR 14*51MM FOR SEMICONDUCTOR PROTECTION WITH TRIP INDICATOR 14F02 D1017178
