Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Series	aR
Application	Semiconductor protection
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	315 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC
Speed Class	aR
Body Style	Square body
Connection/Termination	Flush ends metric threads
Indicators	Striker
Material	Body: Ceramic, Contact: Silver plated copper
Size Code	Size 30
Depth	48 mm
Height	51 mm
Length	50.6 mm
Weight	0.25 kg (Approx.)
Width	40 mm
Standards and Approvals	IEC 60269-4

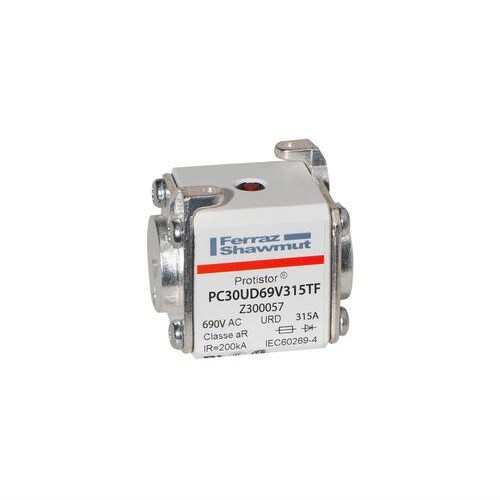

MERSEN FUSE LINK 315A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V Z300057
