Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Series	aR
Application	Semiconductor protection
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	350 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC
Speed Class	aR
Body Style	NH DIN body
Connection/Termination	DIN blade
Indicators	Striker
Material	Body: Ceramic, Contact: Silver plated copper
Size Code	NH2
Height	74 mm
Length	150 mm
Weight	0.62 kg (Approx.)
Width	52 mm
Standards and Approvals	IEC 60269-4; DIN 43620

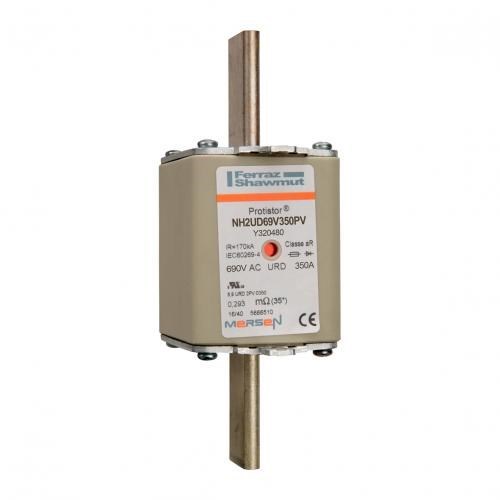

MERSEN FUSE LINK 350A NH2 DIN BLADE FOR SEMICONDUCTOR PROTECTION NHUD2-350/69 Y320480
