Specifications

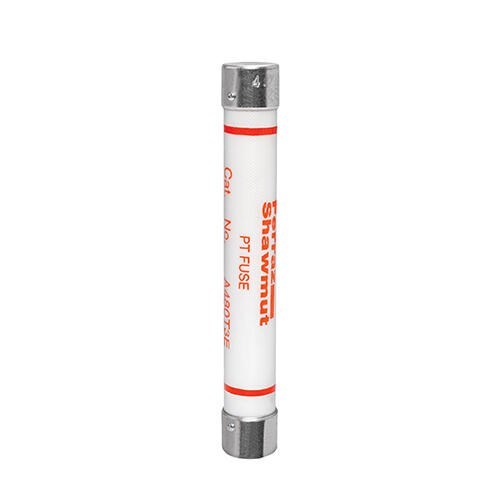

Product Type	Potential transformer fuse
Brand	Mersen
Series	A480T
Application	Primary protection for potential transformers and control power transformers
Breaking Capacity	80 kA
Rated Current	3 A
Rated Frequency	50/60 Hz
Rated Voltage	4.8 kV AC
Speed Class	Current limiting
Body Style	Cylindrical
Connection/Termination	Ferrule end caps
Fixing Centres	127 mm
Indicators	without indicator
Material	Tin-plated copper ferrules
Mounting	Ferrule/clip mounting
Size Code	20.6 x 143
Length	143 mm
Weight	0.1814 kg (Approx.)
Width	Ø 20.6 mm

MERSEN FUSE LINK 3A 4.8KV VT 20.6*143 MM FERRULE AIR INSULATED USE H099988-CLIPS A480T3E
