Specifications

Product Type	Fuse Link
Brand	Mersen
Application	Power semiconductor protection
Utilization Category	aR
Breaking Capacity	170 kA
Rated Current	400 A
Rated Voltage	690 V AC
Speed Class	Ultra fast acting
Body Style	NH square body
Connection/Termination	Plain blades
Indicators	With double indicator
Material	Body:Ceramic, Terminal: Brass
Mounting	NH fuse holder / switch disconnector
Size Code	NH3
Depth	89 mm
Length	150 mm
Weight	1.05 kg (Approx.)
Width	72 mm
Standards and Approvals	IEC 60269-4; DIN 43620/00; RoHS

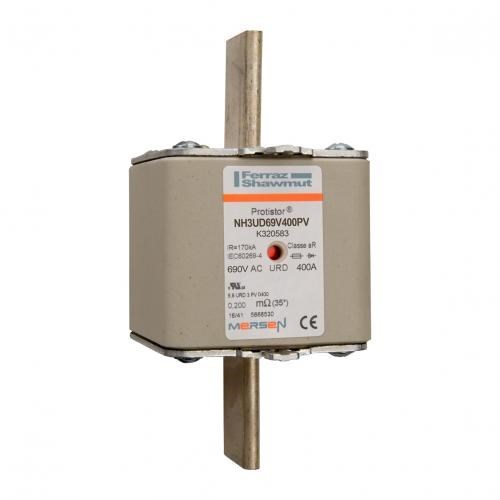

MERSEN FUSE LINK 400A NH3 DIN BLADE FOR SEMICONDUCTOR PROTECTION NHUD3-400/69 K320583
