Specifications

Product Type	Square body high-speed semiconductor fuse
Brand	Mersen
Application	Protection of power semiconductors: diodes, thyristors, IGBT devices, inverters, drives and UPS
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	450 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC IEC / 700 V AC UL
Speed Class	Ultra-fast acting
Body Style	Square body
Connection/Termination	DIN 110 blades
Fixing Centres	110 mm
Indicators	with striker
Material	Ceramic body; silver-plated contacts; sand-filled fuse element
Mounting	Blade / bolted mounting
Size Code	Body size 31
Weight	0.41 kg
Standards and Approvals	IEC 60269-4; VDE 636-23

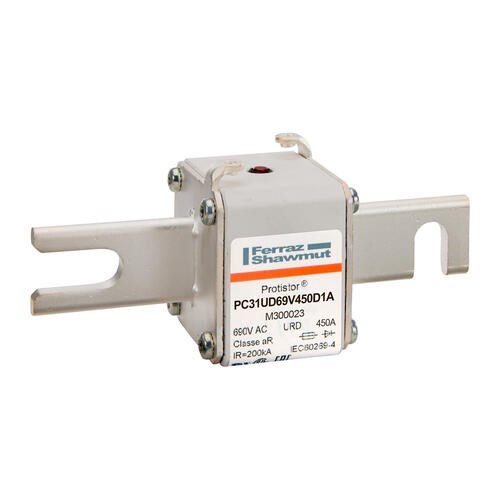

MERSEN FUSE LINK 450A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V M300023
