Specifications

Product Type	Fuse Link
Brand	Mersen
Application	Power semiconductor protection
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	450 A
Rated Voltage	690 V AC
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	DIN 80 blades
Fixing Centres	80 mm
Indicators	With striker
Material	Body:Ceramic, Terminal: Silver plated copper
Mounting	DIN 80 blades
Size Code	Size 32
Depth	65 mm
Length	110 mm
Weight	0.55 kg (Approx.)
Width	59 mm
Standards and Approvals	IEC 60269-4; VDE 636-23; CCC GB 13539.4; RoHS

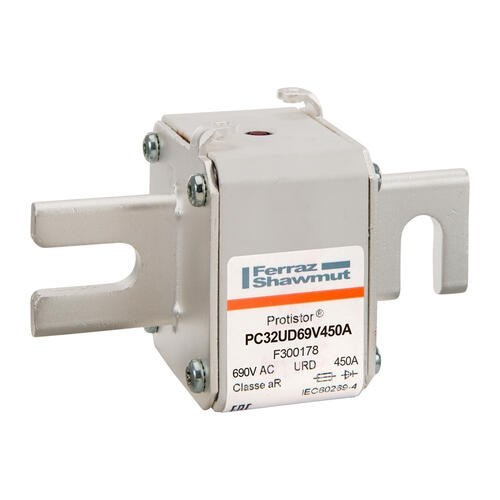

MERSEN FUSE LINK 450A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V F300178
