Specifications

Product Type	Semiconductor fuse link
Brand	Mersen
Series	Protistor
Application	Semiconductor protection
Utilization Category	aR
Breaking Capacity	200 kA
Power Loss	70 W
Rated Current	450 A
Rated Voltage	690 V
Speed Class	aR
Body Style	Square body
Connection/Termination	Flush ends
Indicators	Striker
Material	Body: Ceramic; Contact: Silver plated copper
Mounting	Bolted
Size Code	Size 31
Stud Size	Metric threaded terminals
Length	50.6 mm
Weight	0.38 kg (Approx.)
Width	51 mm
Standards and Approvals	IEC 60269-1 & -4

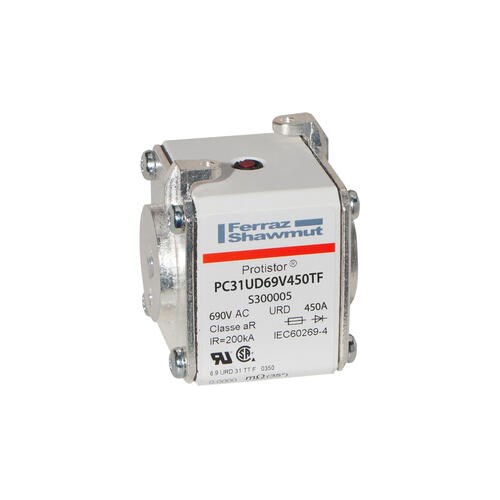

MERSEN FUSE LINK 450A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V S300005
