Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Application	Semiconductor protection for power electronics
Utilization Category	gR
Breaking Capacity	200 kA
Rated Current	4 A
Rated Voltage	690 V AC
Speed Class	Ultra fast acting
Body Style	Cylindrical
Connection/Termination	Ferrule end caps
Fixing Centres	51 mm
Indicators	Trip indicator
Material	Ceramic body, silver-plated copper contacts
Mounting	Ferrule
Size Code	14 x 51
Length	51 mm
Weight	0.025 kg (Approx.)
Width	Ø 14 mm
Standards and Approvals	IEC 60269-4

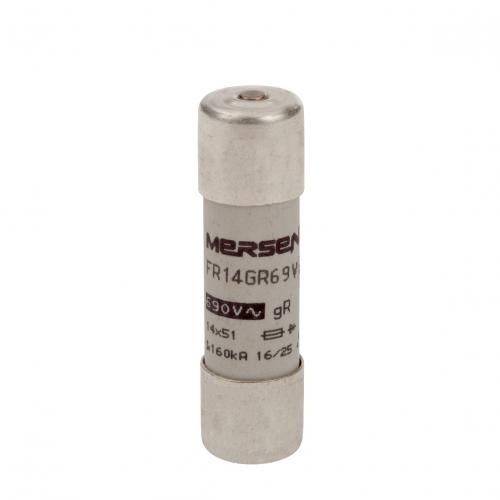

MERSEN FUSE LINK 4A 690V gR 14*51MM FOR SEMICONDUCTOR PROTECTION WITH TRIP INDICATOR 14F04 E1017179
