Specifications

Product Type	Fuse Link
Brand	Mersen
Application	Power semiconductor protection for diodes, thyristors, IGBT and MOSFET devices
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	500 A
Rated Voltage	690 V AC
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	DIN 110 blades
Fixing Centres	110 mm
Indicators	With striker
Material	Body:Ceramic, Terminal: Silver plated copper
Mounting	DIN 110 blades
Size Code	Size 30
Depth	48 mm
Length	134.6 mm
Weight	0.31 kg (Approx.)
Width	40 mm
Standards and Approvals	IEC 60269-4; VDE 636-23; CCC GB 13539.4; RoHS

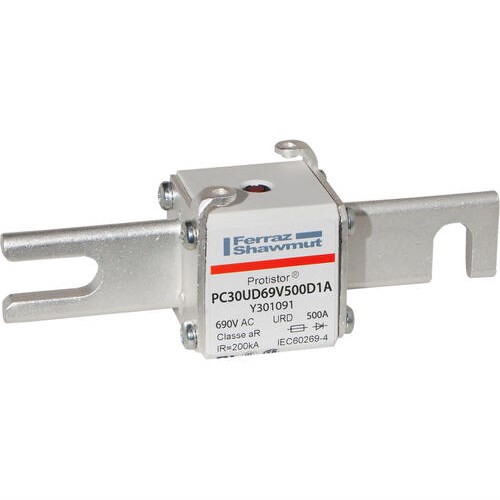

MERSEN FUSE LINK 500A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V Y301091
