Specifications

Product Type	High-speed semiconductor fuse
Brand	Mersen
Application	Protection of power semiconductors: diodes, thyristors, IGBT and MOSFET devices
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	500 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC IEC / 700 V AC UL
Speed Class	Ultra-fast acting
Body Style	Square body
Connection/Termination	DIN 110 blades
Fixing Centres	110 mm
Indicators	with striker
Material	Silver-plated contacts; non-magnetic
Mounting	Blade / bolted mounting
Size Code	Body size 32
Weight	0.56 kg
Standards and Approvals	IEC 60269-1; IEC 60269-4; UL recognized file E76491

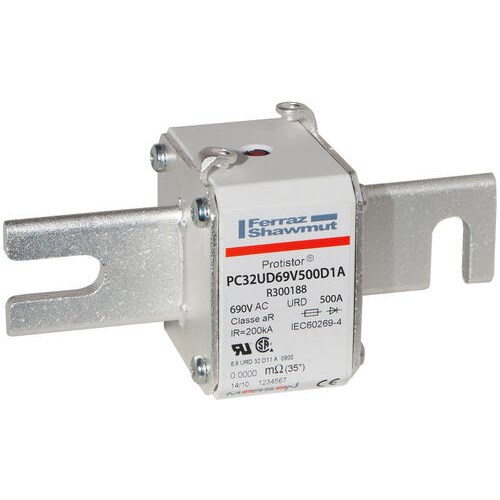

MERSEN FUSE LINK 500A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V R300188
