Specifications

Product Type	Fuse Link
Brand	IPD
Application	Protection of inverters, motor drives, UPS systems and similar 690V or less equipments
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	500 A
Rated Voltage	690 V
Speed Class	Ultra-fast acting
Body Style	Square body
Connection/Termination	Flush ends
Indicators	Wth striker
Material	Body:Ceramic, Terminal: Silver plated brass
Size Code	Size 33
Height	50.6 mm
Length	78.5 mm
Weight	0.81 kg (Approx.)
Width	73 mm
Standards and Approvals	IEC 60269.4

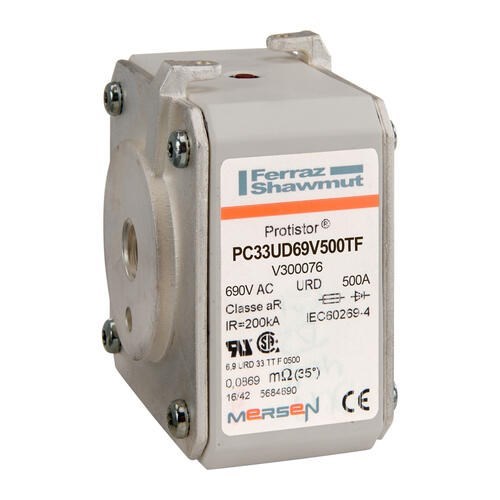

MERSEN FUSE LINK 500A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V V300076
