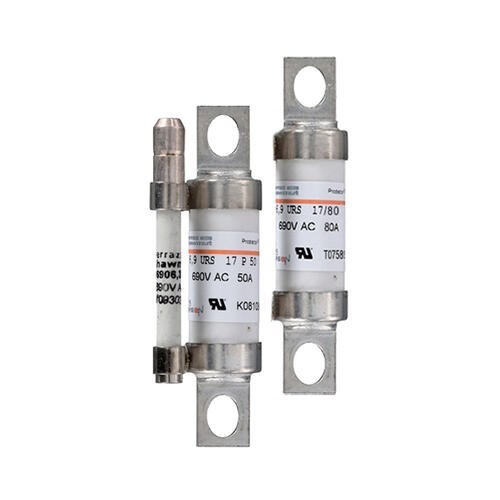

MERSEN FUSE LINK 50A 690V OFFSET TAG FOR SEMI CONDUCTOR PROTECTION WITHOUT TRIP INDICATOR GSB50 P075890

Product Code: P075890

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type High-speed semiconductor fuse
Brand Mersen
Application Protection of power semiconductors
Utilization Category gR
Breaking Capacity Extremely high breaking capacity
Rated Current 50 A
Rated Frequency 50/60 Hz
Rated Voltage 690 V AC IEC / 700 V AC UL
Speed Class Ultra-fast acting
Body Style Offset tag
Connection/Termination Offset tag terminals
Indicators without indicator
Mounting Bolted / tag mounting
Size Code 17 x 49
Length 49 mm
Weight 0.051 kg
Width Ø 17 mm
Standards and Approvals IEC 60269-1; IEC 60269-4
