Specifications

Product Type	Fuse Link
Brand	Mersen
Application	Semiconductor protection
Breaking Capacity	200 kA
Rated Current	550 A
Rated Voltage	690 V
Speed Class	Ultra-fast
Body Style	Square body
Connection/Termination	DIN blade
Indicators	With striker
Material	Ceramic body, silver plated contacts
Size Code	Size 33
Depth	78.5 mm
Length	134.6 mm
Weight	0.87 kg (Approx.)
Width	73 mm
Standards and Approvals	IEC 60269-4

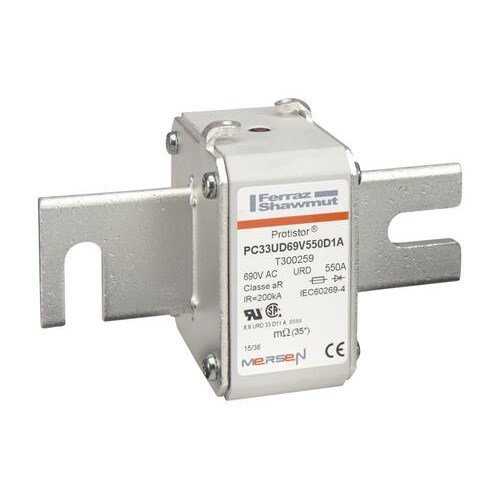

MERSEN FUSE LINK 550A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V T300259
