Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Application	Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	550 A
Rated Voltage	690 V AC
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	DIN 80 blade tags
Fixing Centres	77 mm
Indicators	Striker
Material	Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting	DIN 80 blades
Size Code	Size 31
Depth	56.5 mm
Length	110 mm
Weight	0.39 kg (Approx.)
Width	51 mm
Standards and Approvals	IEC 60269-4

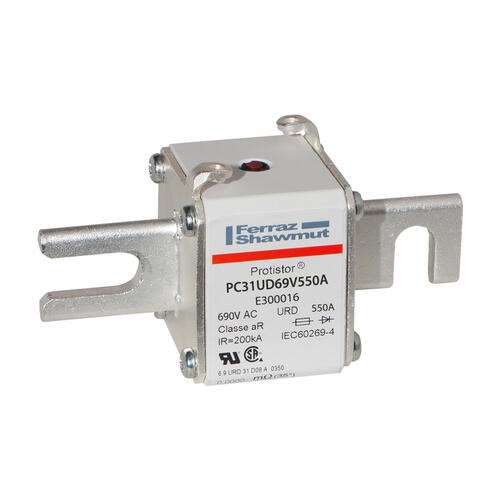

MERSEN FUSE LINK 550A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V E300016
