Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Application	Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	550 A
Rated Voltage	690 V AC IEC / 700 V AC UL
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	DIN 80 blades
Fixing Centres	80 mm
Indicators	Striker
Material	Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting	DIN 80 blades
Size Code	Size 33
Depth	73 mm
Height	78.5 mm
Length	134.6 mm
Weight	0.874 kg (Approx.)
Width	73 mm
Standards and Approvals	IEC 60269-4

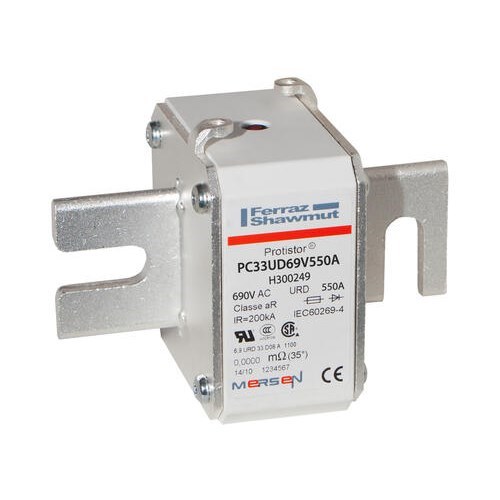

MERSEN FUSE LINK 550A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V H300249
