Specifications

Product Type	High-speed BS88 fuse-link
Brand	Mersen
Application	Semiconductor protection for power electronic systems.
Utilization Category	gR
Breaking Capacity	200 kA AC
Rated Current	55 A
Rated Voltage	690 V AC
Speed Class	Ultra fast acting
Body Style	Offset tag single body
Connection/Termination	Offset tag blades / L brackets
Indicators	Without indicator
Material	Ceramic body, copper terminals
Mounting	Bolted offset tag / L brackets
Size Code	17 x 49
Length	77.2 mm overall
Weight	0.039 kg (Approx.)
Width	Ø 18.5 mm
Standards and Approvals	IEC 60269-1 & -4; BS88-4

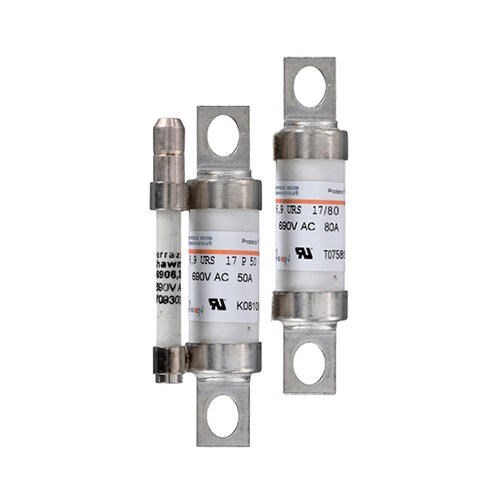

MERSEN FUSE LINK 55A 690V OFFSET TAG FOR SEMI CONDUCTOR PROTECTION WITHOUT TRIP INDICATOR Q075891
