Specifications

Product Type	Class K5 fast-acting fuse
Brand	Mersen
Series	OTS
Application	General purpose branch-circuit and equipment protection
Utilization Category	Class K5
Breaking Capacity	50 kA
Rated Current	4 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC / 300 V DC
Speed Class	Fast acting
Body Style	Cylindrical / ferrule
Connection/Termination	Ferrule end caps
Indicators	without indicator
Mounting	Clip-in fuse holder
Size Code	21 x 127
Length	127 mm
Weight	0.0499 kg
Width	Ø 21 mm
Standards and Approvals	UL 248-9; CSA C22.2 No. 248.9

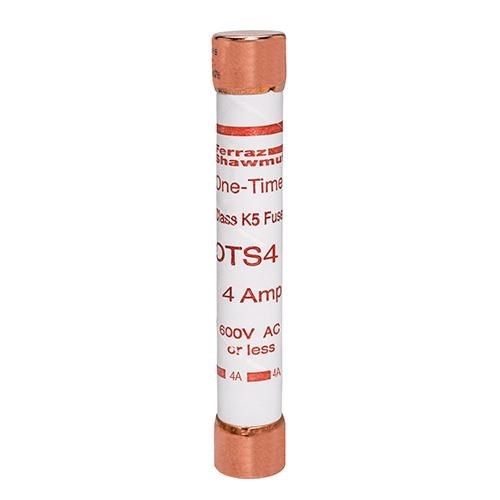

MERSEN FUSE LINK 600VAC 300VDC 4A UL CLASS K-5 GENERAL PURPOSE FERRULE 21*127MM OTS4
