Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Series	aR
Application	Semiconductor protection
Utilization Category	aR
Breaking Capacity	200 kA AC
Rated Current	630 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC
Speed Class	aR
Body Style	Square body
Connection/Termination	DIN 110 blades
Indicators	Striker
Material	Body: Ceramic, Contact: Silver plated copper
Size Code	Size 31
Depth	56.5 mm
Length	134.6 mm overall
Weight	0.39 kg (Approx.)
Width	51 mm
Standards and Approvals	IEC 60269-4

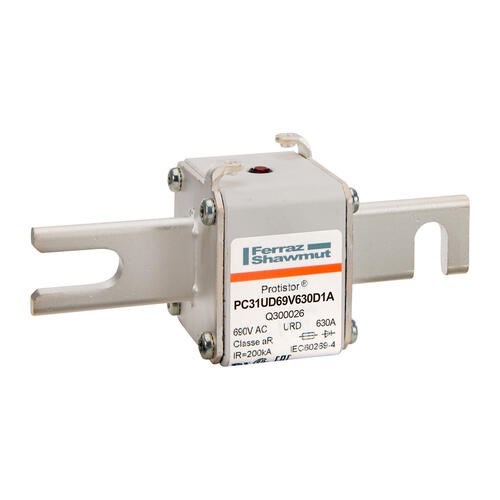

MERSEN FUSE LINK 630A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V Q300026
