Specifications

Product Type	Fuse Link
Brand	IPD
Application	Protection of inverters, motor drives, UPS systems and similar 690V or less equipments
Utilization Category	aR
Rated Current	630 A
Rated Voltage	690 V
Speed Class	Ultra-fast acting
Body Style	Square body
Connection/Termination	DIN 110 Blades
Fixing Centres	110 mm
Indicators	Wth striker
Material	Body:Ceramic, Terminal: Silver plated copper
Size Code	Size 33
Height	78.5 mm
Length	134.6 mm
Weight	0.87 kg (Approx.)
Standards and Approvals	IEC 60269.4

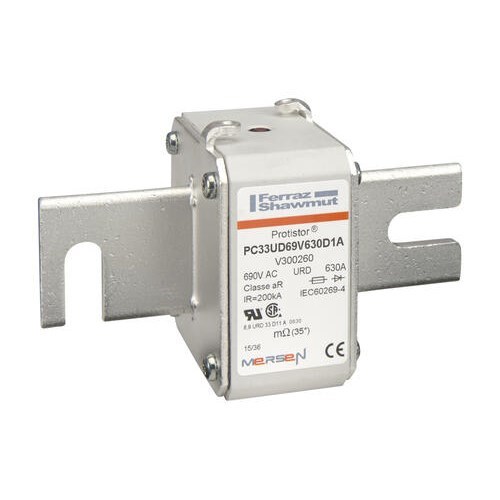

MERSEN FUSE LINK 630A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V V300260
