Specifications

Product Type	Fuse Link
Brand	Mersen
Application	Power semiconductor protection
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	630 A
Rated Voltage	690 V AC
Speed Class	Ultra fast acting
Body Style	Square body
Connection/Termination	DIN 80 blades
Fixing Centres	80 mm
Indicators	With striker
Material	Body:Ceramic, Terminal: Silver plated copper
Mounting	DIN 80 blades
Size Code	Size 31
Depth	56.5 mm
Length	110 mm
Weight	0.39 kg (Approx.)
Width	51 mm
Standards and Approvals	IEC 60269-4; VDE 636-23; CCC GB 13539.4; RoHS

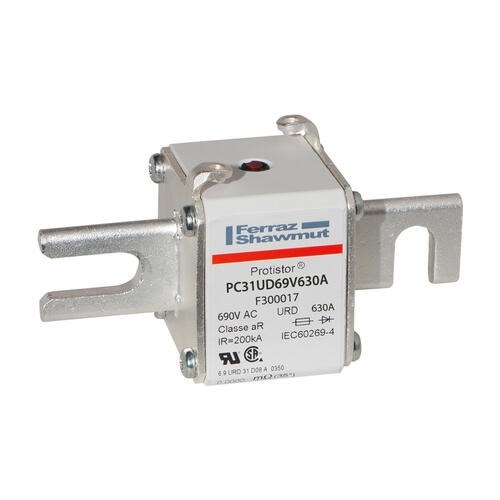

MERSEN FUSE LINK 630A 80MM FOR SEMI CONDUCTOR PROTECTION BODY SIZE 31 660V F300017
