Specifications

Product Type	High-speed fuse-link
Brand	Mersen
Series	gR
Application	Semiconductor protection
Utilization Category	gR
Breaking Capacity	200 kA AC
Rated Current	6 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC
Speed Class	gR
Body Style	Cylindrical
Connection/Termination	Ferrule end caps
Fuse Holder	CMS101
Material	Body: Ceramic, Contact: Silver plated copper
Size Code	10 x 38
Length	38 mm
Weight	0.008 kg (Approx.)
Width	Ø 10 mm
Standards and Approvals	IEC 60269-4

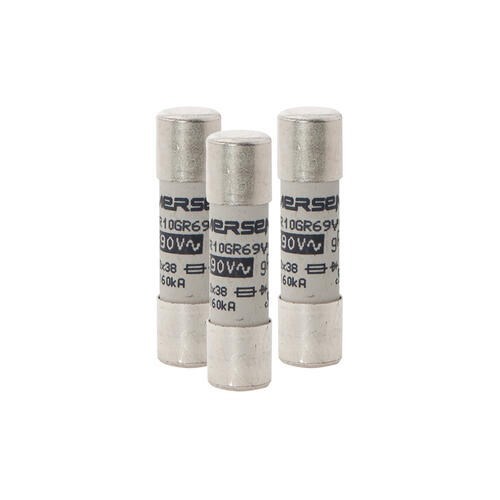

MERSEN FUSE LINK 6A 690V gR 10*38MM FOR SEMICONDUCTOR PROTECTION USE CMS101 BASE 10F06 10GR06 Y1014574
