Specifications

Product Type	Semiconductor fuse link
Brand	Mersen
Series	Protistor
Application	Semiconductor protection
Utilization Category	aR
Breaking Capacity	200 kA
Power Loss	97 W
Rated Current	710 A
Rated Voltage	690 V
Speed Class	aR
Body Style	Dual body
Connection/Termination	Centre tag
Indicators	without indicator
Material	Body: Ceramic; Contact: Silver plated copper
Mounting	Bolt mount
Size Code	2x36x55
Length	110 mm (Overall)
Weight	0.400 kg (Approx.)
Width	79.4 mm
Standards and Approvals	IEC 60269-1 & -4

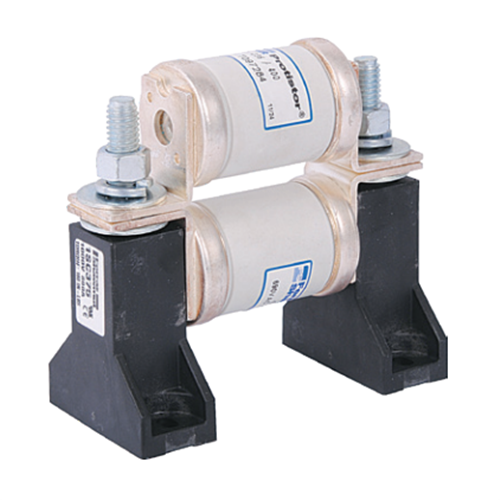

MERSEN FUSE LINK 710A 690V CENTRE TAG DUAL BODY SEMICONDUCTOR PROTECTION S097352
